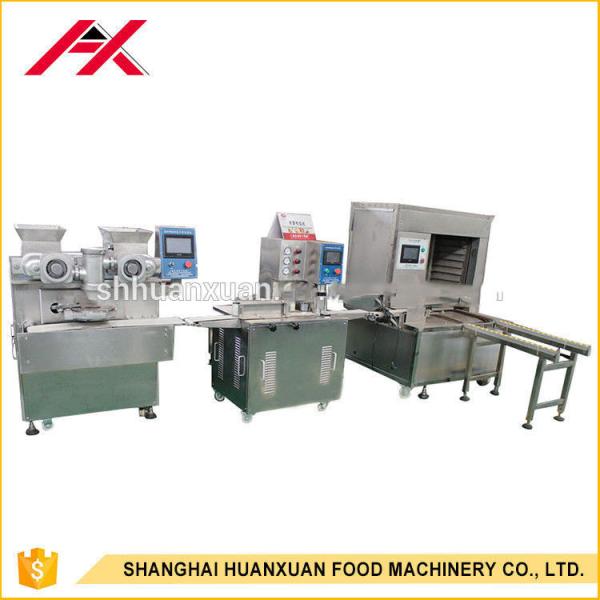

Complete Professional New Condition Mooncake Machinery Processing

Equipment list

Product introduction:

1. moon cake filling machine

This computerized and full-automatic filling machine is light and multifunctional. It can produce different types such as bar shape, continuous-bar shape, triangle shape and so on; the weight, thickness and production speed is adjustable within the scope of the provisions. It also can produce moon cake, soft wife cake, stuffed cookies, crystal cake, cake with meshed Chinese date, crisp cake with pineapple, steamed dumpling with meshed pea, crisp yolk cake and sticky rice ball meat ball and so on. This machine adopts human machine interface operation, it has a memory of hundreds of products, so it is easy to handle with according to the displayed pictures, this machine is durable, easy to operate and all the main controlling components are world famous ones, which greatly guarantee the long time and normal operation.

Parameters:

1. model:HX200

2. Capacity: 25-80 single/minute

3. power:1.9kw/380v50Hz

4. dimension:1150×920×1260mm

5. weight:500kg

6. Size of tray:400×600mm

7. weight range:20-300g

8. shell: filling:2:8-8:2

9. function:mooncake filling,making sticky rice ball and walnut cake etc

2.moon cake forming machine

Moon cake automatic shaping machine is used for shaping moon cake. The green body of moon cake can be pressed ups and downs through the moulds, and then it can turn out to be different shapes of moon cake, It adopts controlling components made by OMROM and the operation is accurate, reliable and adjustable. Moreover, it has unique adjustable unit for green body hand-up and it is the best choice of producing moon cake.

Parameters:

1. model:HX200

2. power:0.75kw/380v/50hz

3. Capacity: 25-80 single/minute

4. dimension :1450×700×1200mm

5. weight:250kg

6. Size of tray:400×600mm

7. compressed air:0.7Mps

8. function:moon cake forming

3. Automatic tray arranging machine

The automatic tray arranging machine is the following machine after the products shaped. The machine is mainly used in assembly line work of arranging single product. It is applied to arrangement of moon cake, pumpkin cake. Using the stepper as the power, also the light-electric detection and PLC control. It is high automatic, and other world famous brand elements to ensure products stable and reliable.

Parameters:

1. model:HX200

2. capacity:1200-3600/H

3. voltage:380v50hz

4. weight:300kg

5. dimension:1500×1000×1550mm

6. power:3.2kw

Q: How can we get detaied quotation form you?
To save your valuable time, please kindly provide information as follows with your inquiry:
1. The Target Capacity (kg/h) you need;
2. Send your idea final product picture

Q:Do you a professional food machienry manufacturer?
Yes, we do. Our team have more than 20 yesrs experience , we are professioanl for the food equipment and export business. And we are know what the customer needs, we can supply
good quality products and competitive price to you.

Q: What methods of Payment are Acceptable?
1) Telegraphic transfer(T/T). If you order is standard machine, just need T/T 30% as deposit before production, then 70% T/T balance before shipment.
2) Western Union
3) L/C: 100% L/C Irrevocable at sight
