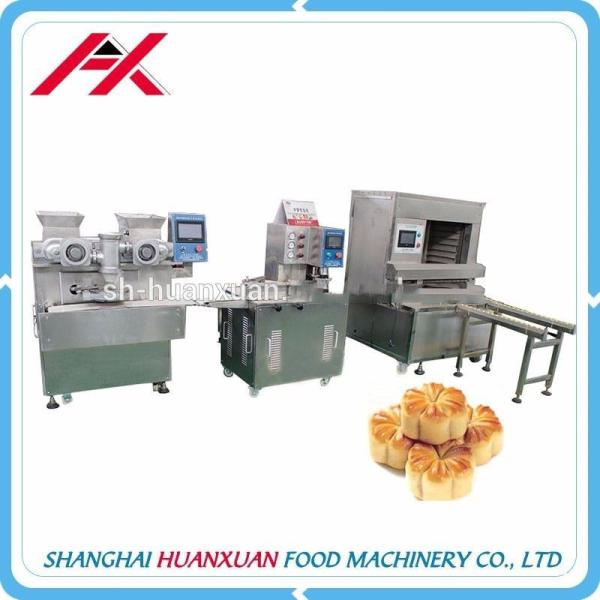

Chinese arranging mooncake encrusting machine/Mooncake forming
machine
Equipment list and quotation:
Type | Capacity | Power | Voltage | Weight | Dimension | Price |
Moon cake filling machine | 25-80 single/minute | 1.9KW | 380V 50HZ | 500kg | 1150*920*1260mm | 6900USD |
Moon cake forming machine | 25-80 single/minute | 0.75KW | 380V 50HZ | 250kg | 1450*700*1200mm | 2400USD |
Automatic tray arranging machine | 20-60 Single/minute | 3.2KW | 380V 50HZ | 300kg | 1500*1000*1550mm | 4600USD |
if you also need packaging machine, contact us, please. | ||||||
Parameters
1. model:HX200
2. Capacity: 25-80 single/minute
3. power:1.9kw/380v50Hz
4. dimension:1150*920*1260mm
5. weight:500kg
6. Size of tray:400*600mm
7. weight range:20-300g
8. shell: filling:2:8-8:2
9. function:mooncake filling,making sticky rice ball and walnut
cake etc
2.moon cake forming machine for Commercial Mooncake Production Line
Moon cake automatic shaping machine is used for shaping moon cake.
The green body of moon cake can be pressed ups and downs through
the moulds, and then it can turn out to be different shapes of moon
cake, It adopts controlling components made by OMROM and the
operation is accurate, reliable and adjustable. Moreover, it has
unique adjustable unit for green body hand-up and it is the best
choice of producing moon cake.
Parameters:
1. model:HX200
2.power:0.75kw/380v/50hz
3. Capacity: 25-80 single/minute
4.dimension :1450*700*1200mm
5.weight:250kg
6.Size of tray:400*600mm
7.compressed air:0.7Mps
8.function:moon cake forming
3. Automatic tray arranging machine for Commercial Mooncake Production Line
The automatic tray arranging machine is the following machine after
the products shaped. The machine is mainly used in assembly line
work of arranging single product. It is applied to arrangement of
moon cake, pumpkin cake. Using the stepper as the power, also the
light-electric detection and PLC control. It is high automatic, and
other world famous brand elements to ensure products stable and
reliable.
Parameters:
1.model:HX200
2.capacity:1200-3600/h
3.voltage:380v50hz
4.weight:300kg
5.dimension:1500*1000*1550mm
6.power:3.2kw
OTHERS:
Testing & training:
The plant assembling, installation, and local team training will be
FREE at no cost. But the buyer should be responsible for the
round-air tickets, local transportation, board & lodging, and
US$50.-/day/person for the pocket money to our technicians.
A: Do you have after-sale service?
R: Yes.We have satisfactory service before and after sale
B: What's the relationship with customer?
R: We treat clients as friends
C: How about the quality system?
R:We have strong technical force, scientific managerment measure
D: How about the price?
R: Not cheapest but the most competitive at the same quality
|
|
